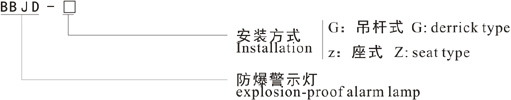

型号寄义 Model implication

合用规模 Applications
1、普遍用于煤油开采、炼油、化工、兵工等风险情况及陆地煤油平台、油轮等风险场合作变乱旌旗灯号警报或作为讯号唆使用；
2、合用于防护请求较高、湿润等场合；
3、合用于爆炸性气体情况的1区、2区场合；
4、合用于可燃性粉尘情况20区、21区、22区场合；
5、合用于ⅡA、ⅡB、ⅡC类爆炸性气体情况；
6、合用于T1~T6组温度组别。
1、widely used in oil extraction, oil refining, chemical, military and other dangerous environment and marine oil levelTable, oil tankers and other dangerous places for accident signal alarm or as a signal indicating;
2、 applicable to the protection requirements higher, humidity etc.;
3、 can be used in zone 1, explosive gas environment in 2 areas;
4、 suitable for combustible dust environment 20 zone, 21 zone, 22 zone location;
5、suitable for A, II B, II C explosive gas environment;
6、 suitable for group T1~T6 temperature group.
产物特色 Features
1、铝合金压铸壳体，外表高压静电喷塑；
2、钢化玻璃灯罩，具备较强抗打击才能；
3、高防腐机能的不锈钢外露紧固件；
4、内装灯罩有红、黄、蓝等多种色彩可供挑选；
5、设置装备摆设deep色客光源，高亮度、长寿命任务；
6、钢管或电缆布线都可。
1、 aluminum alloy die-casting body, with high-pressure electrostatic plastic-sprayed surface;
2、 the lampshade is made of toughened glass, has strong impact resistance ability;Stainless steel exposed fasteners
3、high corrosion resistance;
4、 inside cover a variety of colors red, yellow, blue and other alternative;
5、 configuration of the deep色客 light source, high brightness, long life work;
6、 steel pipe or cable wiring.
首要手艺参数 Main technical parameters
履行规范：GB3836.1、GB3836.2、IEC60079-0、IEC60079-1、IEC60079-0、EN60079-1
防爆标记：ExdⅡCT6
额外电压：AC220V  50Hz(若有特别请求请申明)
闪光次数：150次/min
光源：deep色客光源
防护品级：IP65
防腐品级：WF1 *WF2
引入装配：G3/4"引入口规格，合适φ10mm~φ14mm电缆
接线端子：≤2.5mm2导线靠得住毗连
装配体例：吊杆式(g)、座式(z)
Executive standard: GB3836.1, GB3836.2, IEC60079-0, IEC60079-1,IEC60079-0, EN60079-1
Explosion-proof mark: Exd Ⅱ Ct6
Rated voltage: AC220V 50Hz (if you have special requirements please specify)
Flash: 150 times /min
Source: deep色客 light source
Protection grade: Ip65
Protection grade: WF1 *Wf2
Introduction device: G3/4 "into the mouth, specifications, suitable for φ 10mm~ φ 14mm
cabTerminal: ≤ 2.5mm2 wire reliable connectionInstallation: derrick (g), a type (z)

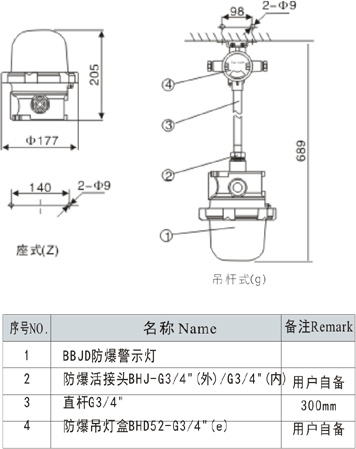

形状及装配尺寸 Outlines ＆ installation dimensions

定货须知 Order note
◆根据产物型号申明逐条挑选并申明防爆标记，比方：须要座式防爆警示灯，则产物选型为BBJD-z  ExdⅡCT6；
◆吊杆式出厂时，只配直杆G3/4"(300mm)，若需防爆接线盒，防爆活讨论等配件，请别的申明。
◆ according to the product model and indicate that headed choice explosion-proof mark, For example: the need for seat type explosion-proof warning lamp, the product selection for the BBJD-z Exd II Ct6;
◆ derrick factory, only with the straight rod G3/4 "(300mm), for the explosion-proof junction box, explosion-proof Union and other accessories, please specify.
