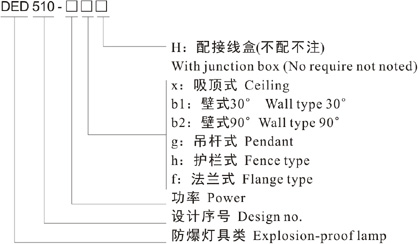

型号寄义 Model implication

合用规模 Applications
1. 普遍用于煤油开采、炼油、化工、兵工等风险情况及陆地煤油平台、油轮等场合作通俗照明和功课照明之用；
2. 合用于节能革新名目及检验改换坚苦的场合；
3. 合用于防护请求较高、湿润的场合；
4. 合用于爆炸性气体情况的1区、2区场合；
5. 合用于ⅡA、ⅡB、ⅡC类爆炸性气体情况；
6. 合用于T1-T6组温度组别。
1. It is widely used in dangerous locations such as oil exploitation,petroleum refining industry, chemical industry, war industry,etc., as well as offshore oil platform, oil tanker and other places for general lighting and task lighting;
2. It is applicable for energy-saving reform projects and locations where are difficult to overhaul or replace;
3. It is applicable for damp locations where have high protection requirements;
4. It is applicable for zone 1 and zone 2 in explosive gas atmosphere;
5. It is applicable for explosive gas atmosphere CAT. IIA, IIB and IIC;
6. It is applicable for temperature groups T1-T6.

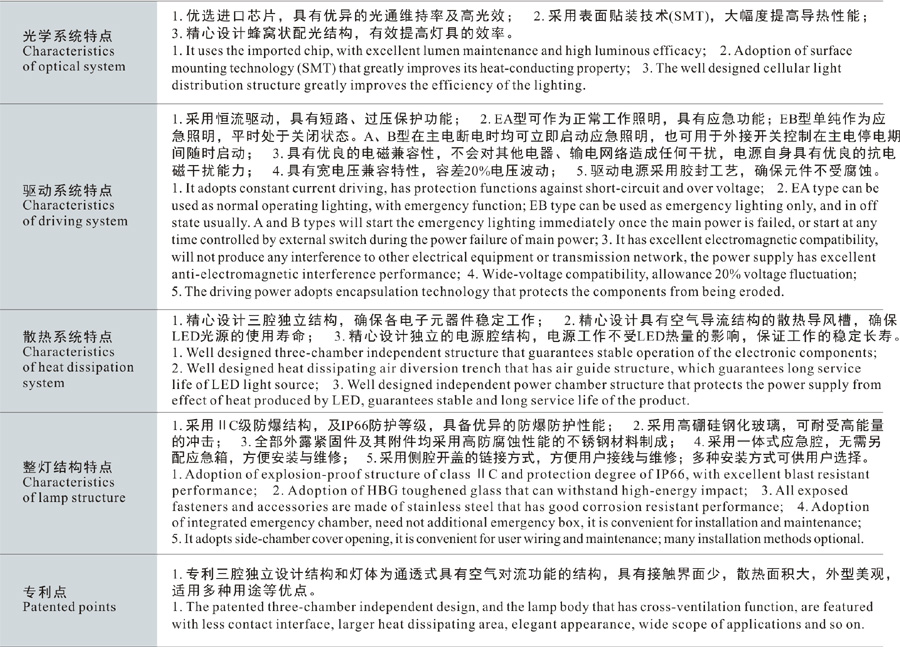

产物特色 Features

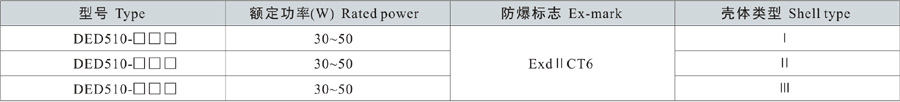

产物规格 Product specifications

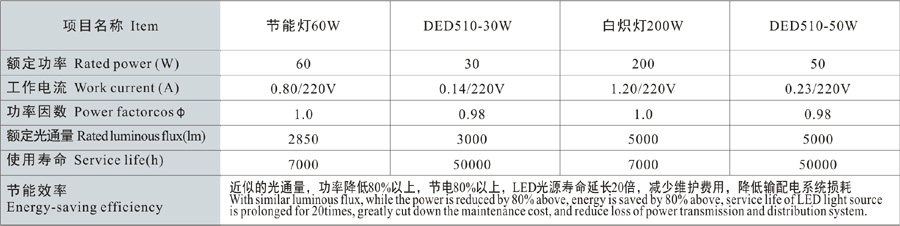

节能对照 Energy saving comparison

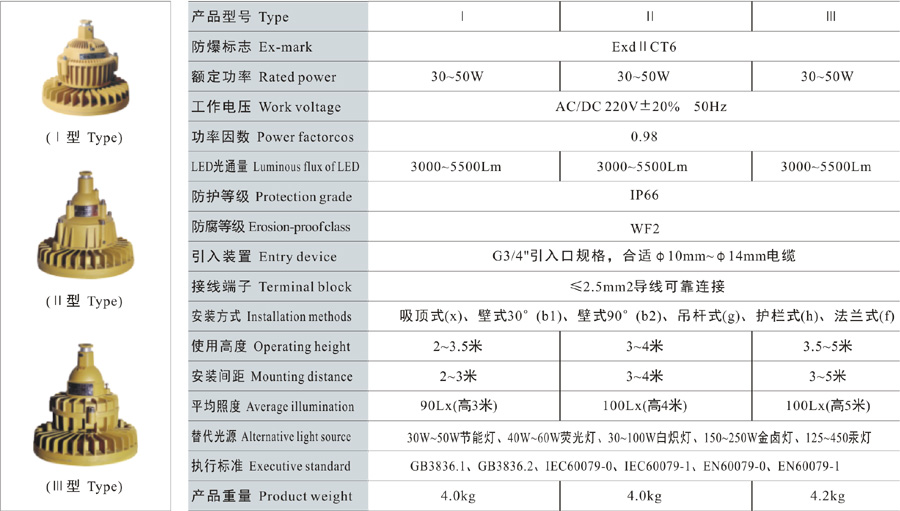

首要手艺参数 Main technical parameters

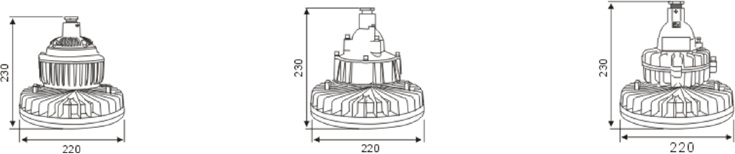

形状及装配尺寸 Outlines ＆ installation dimensions

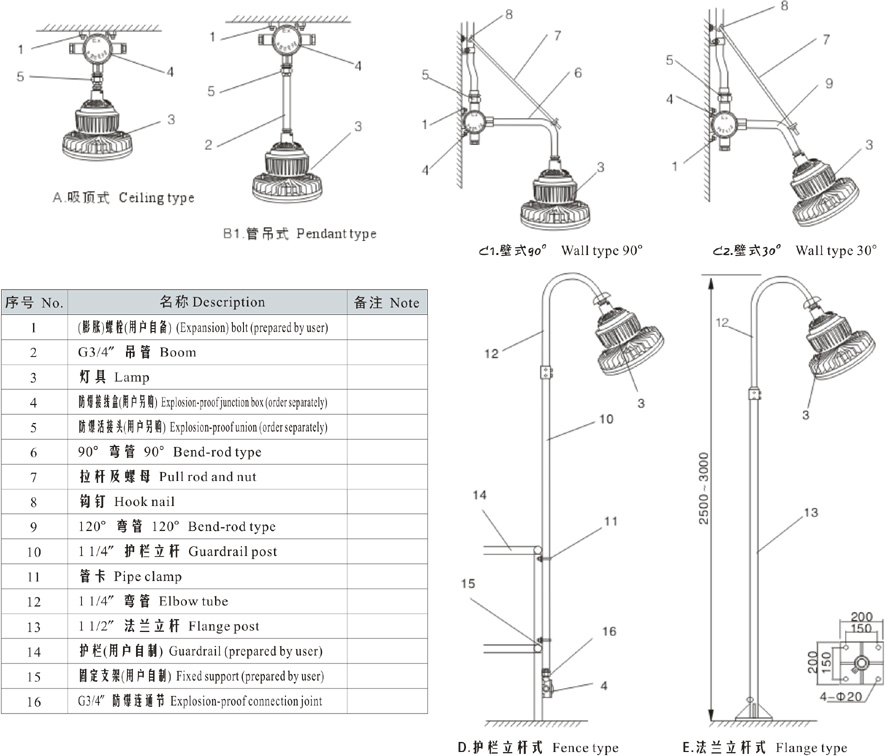

形状及装配举例 Outline and mounting example

定货须知 Order note
注：1、根据产物型号申明逐条挑选并说明防爆标记；比方：须要40W、220V，吊杆式，配接线盒，气体防爆，则产物选型为：DED510-40gH ExdIICT6 Gb;
2、如需IIC接线盒请说明。
3、灯具出厂时均不带电缆、如需配电缆请说明。
4、如需特别电压品级请说明，可选AC/DC36V/24V。
5、如需其余规格应急时候请说明。
Note: 1. Select according to the product model description, pay attention to marking out the ex-mark;e.g.: Need product of 40W, 220V, pendant type, with junction box,gas explosion-proof, then the model should beDED510-40gH ExdIICT6 Gb;
2. Please give clear indication of it if need IIC junction box.
3. The lighting will be delivered without cables, please give clear indication of it if need cables.
4. Please give clear indication of it if need special voltage class, available voltage class: AC/DC36V/24V.
5. Please give clear indication of it if need other emergency time.
