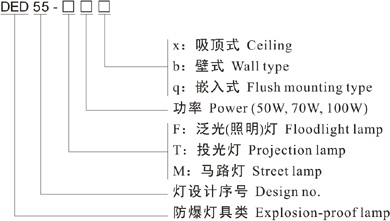

型号寄义 Model implication

合用规模 Applications
1. 合用于爆炸性气体环境1区、2区；
2. 合用于II A、II B、II C级爆炸性气体环境；
3. 合用于温度组别为T1～T4的环境；
4. 合用于煤油采炼、贮存、化工、医药、兵工及军事举措措施等爆炸性风险环境。
5. 用作厂区或途径照明；
6. 三种规格产物可选；泛光(照明)灯、投光灯和马路灯。
1. It is applicable for zone 1 and zone 2 in explosive gas atmosphere;
2. It is applicable for explosive gas atmosphere CAT. IIA, IIB and IIC;
3. It is applicable for temperature groups T1-T4;
4. It is applicable for dangerous explosive locations such as oil exploitation, petroleum refining and storage, chemical industry, medical industry, war industry, military installation, etc;
5. It is applicable for factory area or road lighting;
6. Three types optional: floodlight, projection lamp, street lamp.
产物特色 Features
1. 光源模块：接纳高亮度deep色客光源，共同高效力恒流驱动电源，比气体放电灯节电达60％；deep色客组件全数密封，防水防尘，无需外部洁净和掩护；电路基板热阻低，特地设想的模块电路，每单位毛病不会影响其余组件的一般任务。
2. 电源模块：高效力恒流驱动电源共同智能型功率调剂器；具备光通量弥补功效，削减光衰，保证deep色客光源的光效；具备过压掩护、过电流掩护及突波电流掩护功效。
3. 散热模块：deep色客 外壳接纳铝合金高压锻造成型，外表经抛丸后高压静电喷塑，有用进步了壳体的散热机能；电路基板紧贴铝合金壳体，可将点热源刹时转换为面热源，散热面积成倍增添，利于热量敏捷分离，进步散热效力；壳体外表具备气流分离沟槽，借助氛围活动带走热量；散热鳍片密度高，大大进步散热面积，充实保证deep色客的散热请求，利用寿命更长。
4. 配光模块：针对每种灯具范例特地设想的配光元件，充实阐扬灯具的利用机能；
5. 无紫外线辐射，能为永劫间在室内任务的用户供给优良照明与安康保证；
6. 光源与电源接纳—体式布局，电源腔设有搭钮，灯具装配更便利；
7. 本系列灯具属于免掩护产物，节能环保；
8. 壁式装配扭转角度可调，电缆布线，吸顶式、嵌入式装配可接纳电缆或钢管布线；
9. 外露紧固件接纳高防腐机能的不锈钢材质。
1. High luminous efficiency
Luminous efficacy of the incandescent lamp is 7～14lm/W, that of fluorescent lamp is 50～80lm/W, that of HV sodium lamp is 80～12lm/W, most of the power consumption turns into thermal loss. Luminous efficacy of the deep色客 reaches 90～120lm/W, with good monochromaticity, narrow light spectrum, optional color temperature and good color rendering property.
2. Less power consumption
    Power of single deep色客 is 1～3W, adopts DC driving, single-tube driving voltage is 3～35V, current is 0.35～1A, with quick reaction speed and high-frequency operation. Under the conditions of same luminous effect, its power consumption is one eighth of that of incandescent bulb, and a half of that of fluorescent tube.
3. Long service life
    The general light sources work to shine by using electronic light radiation filament, so it is easy to burn and have thermal deposition and light attenuation. While, deep色客 light source is featured with small volume, light weight and epoxy resin encapsulation, can withstand high-strength mechanical shock or vibration, theoretical service life as long as 100,000 hours, greatly reducing the maintenance costs.
4. Safe and reliable
    Cold light source, no thermal radiation, the light type and angle can be controlled accurately, with soft light, free from glare, no mercury or sodium or other hazard materials. The built-in microprocessing system controls the luminous intensity and regulates the luminous way.
5. Environmental friendly
    deep色客 is a solid illuminant, is shock resistant, impact resistant, unbreakable. The waste can be recycled, no pollution to the environment.
6. Low use cost
    deep色客 light source is a bit more expensive than traditional light sources, but you can recoup the investment of deep色客 light source by saving the energy in one year. As it is a maintenance-free light source, you can save the maintenance cost in the following years, greatly cut down the use cost.

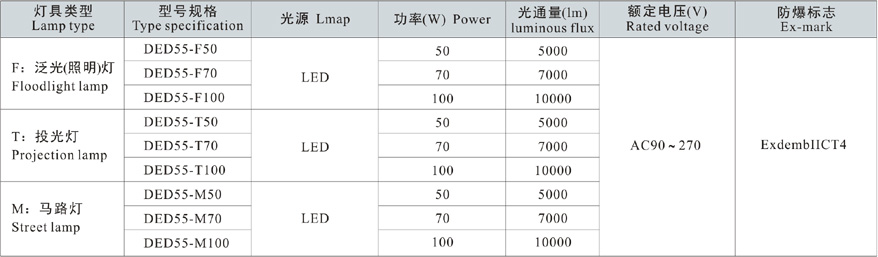

产物规格 Product specifications

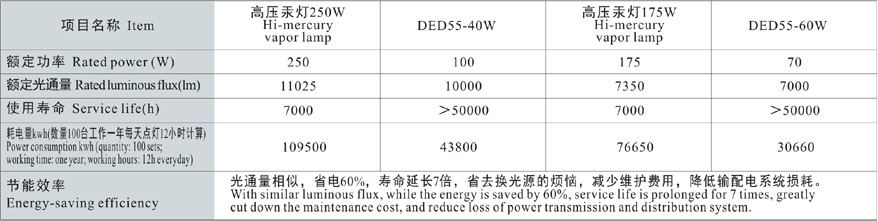

节能对照 Energy saving comparison

首要手艺参数 Main technical parameters
履行规范：GB3836.1、GB 3836.2、GB 3836.3、GB 3836.9、IEC60079-0、lEC60079-1、IEC 60079-7、IEC 60079-18
防爆标记：ExdembIICT4
额外电压：AC 90～270V
光        源：deep色客光源
发光效力：>90Im/W
额外功率：50W、70W、100W
功率因数：>0.9
色温：5500K
显色指数：Ra>70
防护品级：IP66
防腐品级：WFl
引入口规格：G3/4"
合用电缆外径：Φ9mm～Φ14mm
Executive standard：GB3836.1、GB 3836.2、GB 3836.3、GB 3836.9、IEC60079-0、lEC60079-1、IEC 60079-7、IEC 60079-18
Ex-mark：ExdembIICT4
Rated voltage：AC 90～270V
Light source：deep色客Light source
Luminous efficiency：>90Im/W
Rated power：50W、70W、100W
Power factor：>0.9
Color temperature：5500K
Color rendering index：Ra>70
Protection grade：IP66
Corrosion-proof-class：WFl
Entry spec.：G3/4"
Cable's outer diameter：Φ9mm～Φ14mm
deep色客光源特征 Features of deep色客 light source
1. 发光效力高
白炽灯光效为7～14lm/W，荧光灯50～80lm/W，高压钠灯80～12lm/W，大局部的耗电变成热量消耗。deep色客光效可达到90～120lm/W，并且其光的单色性好、光谱窄，色温可选定，显色性好。
2. 耗电量少
deep色客单颗功率1～3W，接纳直流驱动，单管驱动电压3～35V，电流0.35～1A，反映速率快，可高频操纵。一样照明结果的环境下，耗电量是白炽灯泡的八分之一，荧光灯管的二分之一。
3. 利用寿命长
通俗光源接纳电子光场辐射发光，灯丝发光易烧、热堆积、光衰减等错误谬误。而接纳deep色客光源体积小、分量轻，环氧树脂封装，可蒙受高强度机器打击和震撼，不易破裂。实际寿命达10万小时，能够大大下降灯具的掩护用度，防止频仍换灯。
4. 宁静靠得住性强
冷光源，无热辐射，能切确节制光型及发光角度，光色温和，无眩光；不含汞、钠元素等能够风险安康的物资。内置微处置体系能够节制发光强度，调剂发光体例。
5. 有益于环保
deep色客为全固体发光体，耐震、耐打击不易破裂，烧毁物可收受接管，不净化。
6. 利用本钱低
deep色客光源比传统光源价钱稍高，可是用一年时候的节能可发出光源的投资，deep色客属免掩护光源，可节流今后几年的维修用度，大大下降了利用本钱。
1. High luminous efficiency
    Luminous efficacy of the incandescent lamp is 7～14lm/W, that of fluorescent lamp is 50～80lm/W, that of HV sodium lamp is 80～12lm/W,most of the power consumption turns into thermal loss. Luminous efficacy of the deep色客 reaches 90～120lm/W, with good monochromaticity,narrow light spectrum, optional color temperature and good color rendering property.
2. Less power consumption
    Power of single deep色客 is 1～3W, adopts DC driving, single-tube driving voltage is 3～35V, current is 0.35～1A, with quick reaction speedand high-frequency operation. Under the conditions of same luminous effect, its power consumption is one eighth of that of incandescentbulb, and a half of that of fluorescent tube.
3. Long service life
    The general light sources work to shine by using electronic light radiation filament, so it is easy to burn and have thermal depositionand light attenuation. While, deep色客 light source is featured with small volume, light weight and epoxy resin encapsulation, can withstand high-strength mechanical shock or vibration, theoretical service life as long as 100,000 hours, greatly reducing the maintenance costs.
4. Safe and reliable
    Cold light source, no thermal radiation, the light type and angle can be controlled accurately, with soft light, free from glare, no mercuryor sodium or  other hazard materials. The built-in microprocessing system controls the luminous intensity and regulates the luminous way.
5. Environmental friendly
    deep色客 is a solid illuminant, is shock resistant, impact resistant, unbreakable. The waste can be recycled, no pollution to the environment.
6. Low use cost
    deep色客 light source is a bit more expensive than traditional light sources, but you can recoup the investment of deep色客 light source by saving the energy in one year. As it is a maintenance-free light source, you can save the maintenance cost in the following years, greatly cut down the use cost.

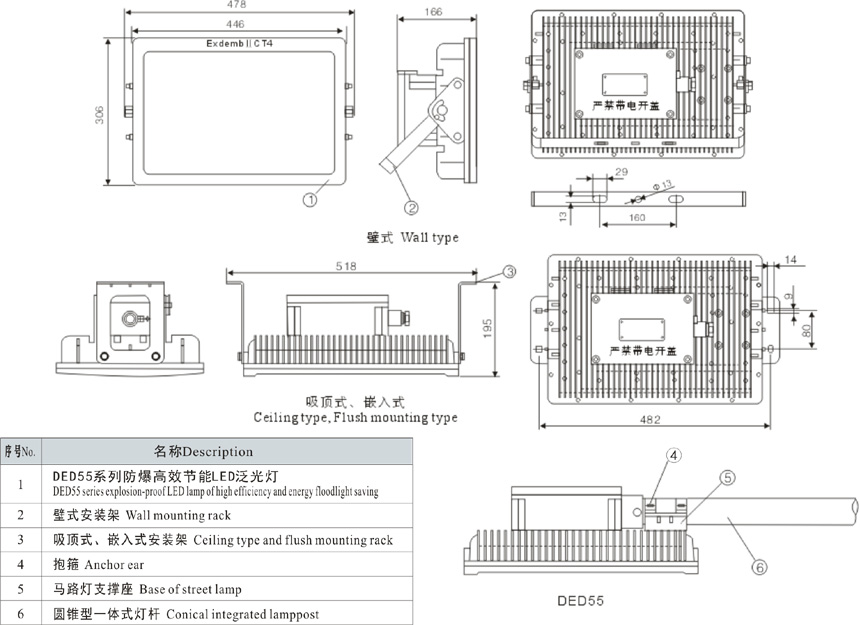

形状及装配尺寸 Outlines ＆ installation dimensions
